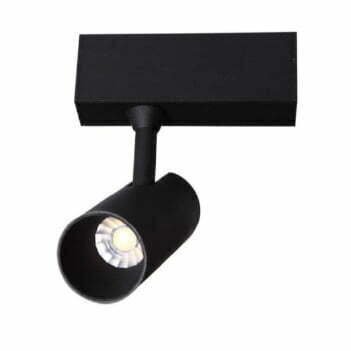

CASU SYSTEM
Product Description
System type
Spotlight
Aluminium body
Aluminium extrusion heatsink
Nickel plated brass parts
Electrostatic powder coating paint
High performance COB LED
High efficiency reflector
Optional body colors
ENEC standards
Installation
Aluminum extruded body UV protected diffuser Nickel plated brass parts Electrostatic powder coating paint Production in different lengths Optional body colors ENEC standards
Connection
ON/OFF- DALI- DIMMABLE 1-10V
Design
Aluminum injection body coating paint Optional body colors
Reflector
Reflector of matt metallised aluminium in white color as standard
Light distribution
DIRECT BEAM ANGLE
Specification
Versions
Documents
Technical Drawings
Specification
İnput Voltage:
230 V
IP Rate:
40, 44, 54, 65
Impact Resistance:
CCT:
3000, 4000, 6500 K
Mounting Option:
Surface
Lightway:
DIRECT
Frame:
Trim
Beam Angle:
Direct, Wide beam
Control:
DALI, DMX, ON/OFF
Version Product Code
Version Power
Version CCT
Version Dimensions
Version Lumen
CASU.SYS.5.137.N.4.120
5 W
4000 K
137 mm
550 lm
CASU.SYS.10.137.N.4.120
10 W
4000 K
137 mm
1100 lm
CASU.SYS.10.270.N.4.120
10 W
4000 K
270 mm
1100 lm
CASU.SYS.20.270.N.4.120
20 W
4000 K
270 mm
2200 lm
CASU.SYS.15.410.N.4.120
15 W
4000 K
410 mm
1648 lm
CASU.SYS.30.410.N.4.120
30 W
4000 K
410 mm
3300 lm
