AURA LINE TRACK
Product Description
Track mounted
Aluminum extruded body
UV protected diffuser
Diffused Light
Adjustable length steel ropes
Nickel plated brass parts
Constant current LED driver
Electrostatic powder coating paint
Production in different lengths
Optional body colors
ENEC standards
Installation
Track mounted Aluminum extruded body UV protected diffuser Diffused Light Adjustable length steel ropes Nickel plated brass parts Constant current LED driver Electrostatic powder coating paint Production in different lengths Optional body colors ENEC standards
Connection
DALI, DIM, DMX
Design
Reflector
PMMA Diffuser
Light distribution
2200K, 2700K, 3000K, 5000K, 6500K
Versions
Documents

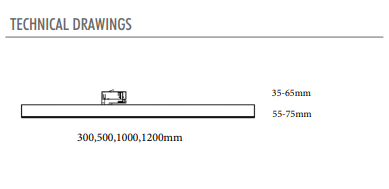

Technical Drawings
Version Product Code
Version Power
Version CCT
Version Dimensions
Version Lumen
AURALINE TRACK.10.300.N.4.120
10 W
4000 K
300 mm
1030 lm
AURALINE TRACK.15.300.N.4.120
15 W
4000 K
300 mm
1545 lm
AURALINE TRACK.20.300.N.4.120
20 W
4000 K
300 mm
2060 lm
AURALINE TRACK.25.500.N.4.120
25 W
4000 K
500 mm
2575 lm
AURALINE TRACK.30.500.N.4.120
30 W
4000 K
500 mm
3090 lm
AURALINE TRACK.35.1000.N.4.120
35 W
4000 K
1000 mm
3605 lm
AURALINE TRACK.40.1000.N.4.120
40 W
4000 K
1000 mm
4120 lm
AURALINE TRACK.45.1200.N.4.120
45 W
4000 K
1200 mm
4635 lm
AURALINE TRACK.50.1200.N.4.120
50 W
4000 K
1200 mm
5150 lm
AURALINE TRACK.55.1200.N.4.120
55 W
4000 K
1200 mm
5665 lm
