AURA LINE 96
Product Description
Aluminum extruded body
UV protected diffuser
Adjustable length steel ropes
Nickel plated brass parts
Constant current LED driver
Electrostatic powder coating paint
Production in different lengths
Optional body colors
ENEC standards
OPTIONAL : IP 40 , IP 44 , IP 54 , IP 65.
Installation
Aluminium extruded body Anodized coating UV protected frosted diffuser Adjustable lenght steel ropes Nickel Plated brass parts Constant current LED driver Electrostatic powder coating paint Production in different lenghts Optional body colors ENEC standarts
Connection
DALI, DIM, DMX
Design
Reflector
PMMA Diffuser
Light distribution
2200K, 2700K, 3000K, 5000K, 6500K
Versions
Documents

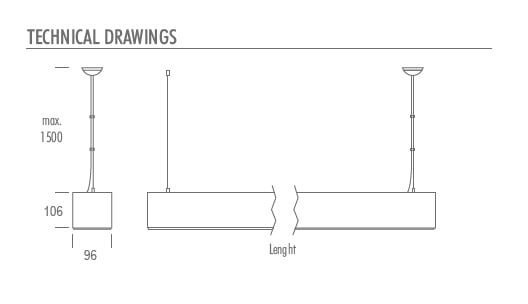

Technical Drawings
Version Product Code
Version Power
Version CCT
Version Dimensions
Version Lumen
AURA LINE 96.11.500.N.4.120
11 W
4000 K
500 mm
1133 lm
AURA LINE 96.16.500.N.4.120
16 W
4000 K
500 mm
1648 lm
AURA LINE 96.15.600.N.4.120
15 W
4000 K
600 mm
1725 lm
AURA LINE 96.18.600.N.4.120
18 W
4000 K
600 mm
1854 lm
AURA LINE 96.20.800.N.4.120
20 W
4000 K
800 mm
2300 lm
AURA LINE 96.22.1000.N.4.120
22 W
4000 K
1000 mm
2266 lm
AURA LINE 96.25.1000.N.4.120
25 W
4000 K
1000 mm
2575 lm
AURA LINE 96.32.1000.N.4.120
32 W
4000 K
1000 mm
3296 lm
AURA LINE 96.30.1100.N.4.120
30 W
4000 K
1100 mm
3450 lm
AURA LINE 96.27.1200.N.4.120
27 W
4000 K
1200 mm
2781 lm
AURA LINE 96.28.1200.N.4.120
28 W
4000 K
1200 mm
2884 lm
AURA LINE 96.39.1200.N.4.120
39 W
4000 K
1200 mm
4017 lm
AURA LINE 96.30.1300.N.4.120
30 W
4000 K
1300 mm
3090 lm
AURA LINE 96.36.1400.N.4.120
36 W
4000 K
1400 mm
3708 lm
AURA LINE 96.33.1500.N.4.120
33 W
4000 K
1500 mm
3399 lm
AURA LINE 96.45.1500.N.4.120
45 W
4000 K
1500 mm
4635 lm
AURA LINE 96.48.1500.N.4.120
48 W
4000 K
1500 mm
4944 lm
AURA LINE 96.45.1800.N.4.120
45 W
4000 K
1800 mm
5175 lm
AURA LINE 96.48.1800.N.4.120
48 W
4000 K
1800 mm
4944 lm
AURA LINE 96.44.2000.N.4.120
44 W
4000 K
2000 mm
4532 lm
AURA LINE 96.54.2000.N.4.120
54 W
4000 K
2000 mm
5562 lm
AURA LINE 96.64.2000.N.4.120
64 W
4000 K
2000 mm
6592 lm
AURA LINE 96.44.2500.N.4.120
44 W
4000 K
2500 mm
5060 lm
AURA LINE 96.64.2500.N.4.120
64 W
4000 K
2500 mm
6510 lm
AURA LINE 96.65.3000.N.4.120
65 W
4000 K
3000 mm
6695 lm
AURA LINE 96.96.3000.N.4.120
96 W
4000 K
3000 mm
9888 lm
