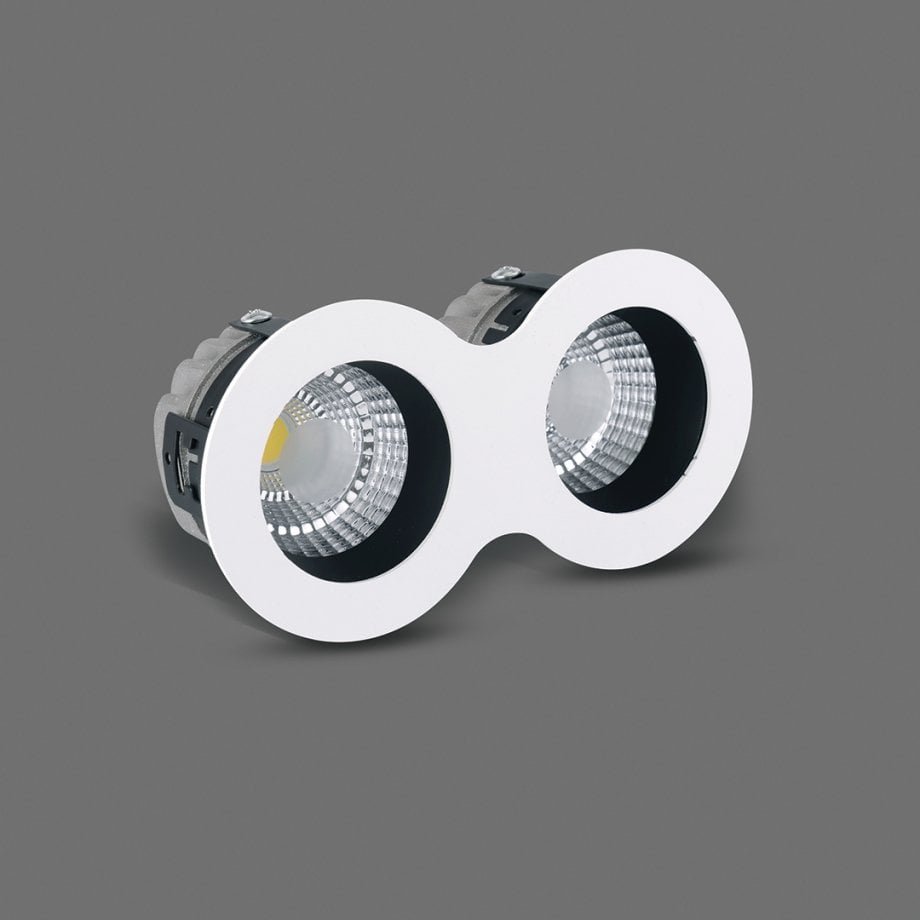

ARO DUO
Product Description
Aluminum injection body
High efficiency reflector
Tempered Glass Current LED driver
Electrostatic powder coating paint
Optional body colors
ENEC Standards
Installation
Aluminum injection body High efficiency reflector Tempered Glass Current LED driver Electrostatic powder coating paint Optional body colors ENEC Standards
Connection
DALI, DIM, DMX
Design
Reflector
PMMA Diffuser
Light distribution
Asymmetrical, Narrow beam, Wide beam
Specification
Versions
Documents

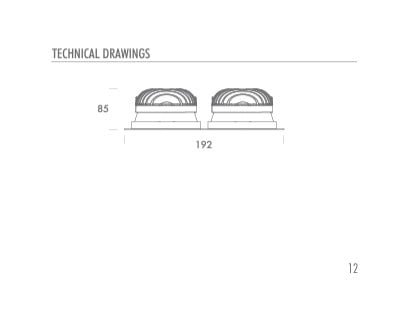

Technical Drawings
Specification
İnput Voltage:
220 V
IP Rate:
20
Impact Resistance:
09
CCT:
4000 K
Mounting Option:
Lightway:
Frame:
Trimless
Beam Angle:
Direct
Control:
ON/OFF
Version Product Code
Version Power
Version CCT
Version Dimensions
Version Lumen
ARO.14.192.N.4.25
14 W
4000 K
1192X85 mm
1540 lm
ARO.14.192.N.4.47
14 W
4000 K
1192X85 mm
1520 lm
ARO.20.192.N.4.25
20 W
4000 K
1192X85 mm
2410 lm
ARO.20.192.N.4.47
20 W
4000 K
1192X85 mm
2390 lm
