ARES FAMILY
Product Description
Aluminum injection body,
UV protected diffuser,
Opal Polystyren/PMMA (Fire-Proof) /
Microprismatic (3D) Diffuser Types,
Constant current LED driver,
Electrostatic powder coating paint,
Optional body colors,
ENEC Standards
Installation
Aluminum injection body, UV protected diffuser, Opal Polystyren/PMMA (Fire-Proof) / Microprismatic (3D) Diffuser Types, Constant current LED driver, Electrostatic powder coating paint, Optional body colors, ENEC Standards
Connection
DALI, DIM, DMX
Design
Reflector
PMMA Diffuser
Light distribution
Asymmetrical, Narrow beam, Wide beam
Specification
Versions
Documents

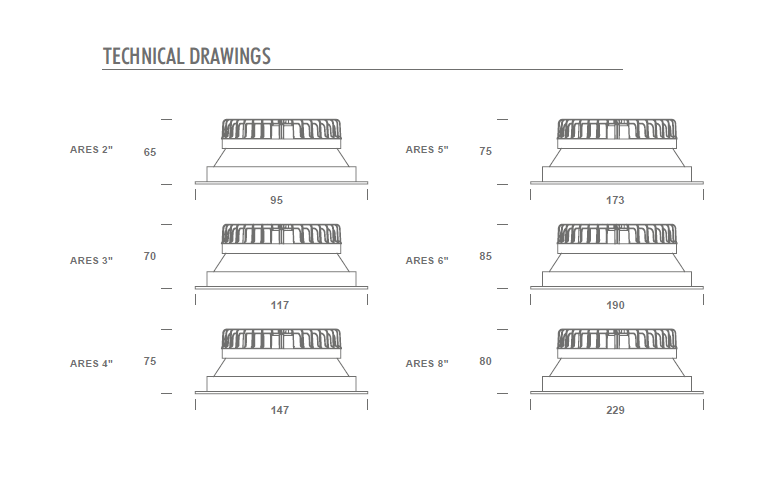

Technical Drawings
Specification
İnput Voltage:
220 V
IP Rate:
44
Impact Resistance:
09
CCT:
4000 K
Mounting Option:
Lightway:
Frame:
Beam Angle:
Direct
Control:
ON/OFF
Version Product Code
Version Power
Version CCT
Version Dimensions
Version Lumen
ARES 2".6.95.N.4.95
6 W
4000 K
95 cm
570 lm
ARES 3".6.117.N.4.95
6 W
4000 K
117 cm
570 lm
ARES 4".8.147.N.4.95
8 W
4000 K
147 cm
760 lm
ARES 5".10.173.N.4.95
10 W
4000 K
173 cm
1050 lm
ARES 6".10.190.N.4.95
10 W
4000 K
190 cm
1050 lm
ARES 8".21.229.N.4.95
21 W
4000 K
214 cm
2415 lm
ARES 8".46.229.N.4.95
46 W
4000 K
214 cm
4616 lm
