ALTO TRIO
Product Description
Aluminum extrusion body
Aluminum injection end caps
PMMA optical lens
Constant current LED driver
Electrostatic powder coating paint
Optional body colors
ENEC Standards
Installation
RECESSED INSTALLATION IN THE CEILING DRIVER HOUSING IS SEPARATE FOR EASY INSTALLATION
Connection
3X0,75 mm2 CABLE
Design

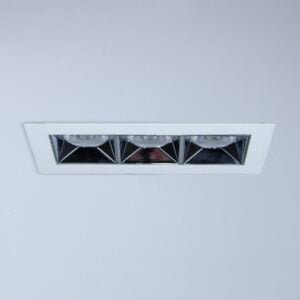

SQUARE SHAPE FIXED DOWNLIGHT MADE OF ALUMINIUM IN WHITE COLOR AS STANDARD OPTION WITH METALLISED REFLECTOR AND CLEAR LENSES
Reflector
Reflector of matt metallised aluminium in white color as standard
Light distribution
DIRECT BEAM ANGLE
Versions
Documents
Technical Drawings
Version Product Code
Version Power
Version CCT
Version Dimensions
Version Lumen
ALTO3.10.62x138.N.4.36
10 W
4000 K
62X138X61 mm
950 lm
ALTO3.10.62x138.N.4.35x7
10 W
4000 K
62X138X61 mm
930 lm
ALTO3.12.62x138.N.4.36
12 W
4000 K
62X138X61 mm
1100 lm
ALTO3.12.62x138.N.4.35x70
12 W
4000 K
62X138X61 mm
1080 lm
ALTO3.15.62x138.N.4.36
15 W
4000 K
62X138X61 mm
1200 lm
ALTO3.15.62x138.N.4.35x70
15 W
4000 K
62X138X61 mm
1175 lm
ALTO3.17.62x138.N.4.36
17 W
4000 K
62X138X61 mm
1326 lm
ALTO3.20.62x138.N.4.36
20 W
4000 K
62X138X61 mm
1560 lm
