ALTO 5
Product Description
Aluminum extrusion body
Aluminum injection end caps
PMMA optical lens
Constant current LED driver
Electrostatic powder coating paint
Optional body colors
ENEC Standards
Installation
RECESSED INSTALLATION IN THE CEILING DRIVER HOUSING IS SEPARATE FOR EASY INSTALLATION
Connection
3X0,75 mm2 CABLE
Design
SQUARE SHAPE FIXED DOWNLIGHT MADE OF ALUMINIUM IN WHITE COLOR AS STANDARD OPTION WITH METALLISED REFLECTOR AND CLEAR LENSES
Reflector
Reflector of matt metallised aluminium in white color as standard
Light distribution
DIRECT BEAM ANGLE
Versions
Documents

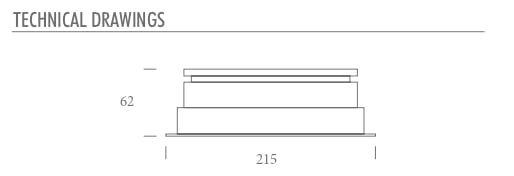

Technical Drawings
Version Product Code
Version Power
Version CCT
Version Dimensions
Version Lumen
ALTO5.20.62x215.N.4.36
20 W
4000 K
62X215X61 mm
1600 lm
ALTO5.20.62x215.N.4.35X70
20 W
4000 K
62X215X61 mm
1580 lm
ALTO5.25.62x215.N.4.36
25 W
4000 K
62X215X61 mm
2000 lm
ALTO5.25.62x215.N.4.35X70
25 W
4000 K
62X215X61 mm
1980 lm
ALTO5.30.62x215.N.4.36
30 W
4000 K
62X215X61 mm
2500 lm
ALTO5.30.62x215.N.4.35x70
30 W
4000 K
62X215X61 mm
2480 lm
ALTO5.35.62x215.N.4.35x70
35 W
4000 K
62X215X61 mm
2360 lm
