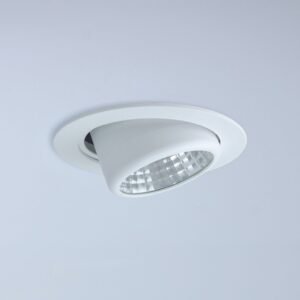

ALCOR
Product Description
Aluminum injection body
High efficiency reflector
Constant current LED driver
Electrostatic powder coating paint
Optional body colors
ENEC Standards
Installation
Aluminum injection body Tempered or Frosted Glass High efficiency reflector Constant current LED driver Electrostatic powder coating paint Optional body colors ENEC Standards
Connection
DALI, DIM, DMX
Design
Reflector
PMMA Diffuser
Light distribution
Asymmetrical, Narrow beam, Wide beam
Specification
Versions
Documents
Technical Drawings
Specification
İnput Voltage:
220 V
IP Rate:
20
Impact Resistance:
09
CCT:
4000 K
Mounting Option:
Recessed
Lightway:
DIRECT
Frame:
Trimless
Beam Angle:
Direct
Control:
ON/OFF
Version Product Code
Version Power
Version CCT
Version Dimensions
Version Lumen
ALCOR.20.Ø130.N.4.24
20 W
4000 K
105X147 mm
2300 lm
ALCOR.20.Ø130.N.4.24
20 W
4000 K
105X147 mm
2280 lm
ALCOR.20.Ø130.N.4.74
20 W
4000 K
105X147 mm
2260 lm
ALCOR.30.Ø130.N.4.24
30 W
4000 K
105X147 mm
3600 lm
ALCOR.30.Ø130.N.4.40
30 W
4000 K
105X147 mm
3580 lm
ALCOR.30.Ø130.N.4.74
30 W
4000 K
105X147 mm
3560 lm
