LOOP HORIZONTAL 50
Product Description
Aluminium extruded body anodized coating
UV protected frosted diffuser
Adjustable lenght steel roped
Nickel Plated brass parts
Constant current LED driver
Electrostatic powder coating paint
Production in different lenghts
Optional body colors
ENEC standarts
Installation
Aluminium extruded body anodized coating UV protected frosted diffuser Adjustable lenght steel roped Nickel Plated brass parts Constant current LED driver Electrostatic powder coating paint Production in different lenghts Optional body colors ENEC standarts
Connection
DALI, DIM, DMX
Design
Reflector
PMMA Diffuser
Light distribution
2200K, 2700K, 3000K, 5000K, 6500K
Versions
Documents

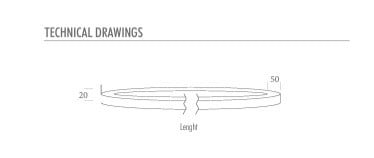

Technical Drawings
Version Product Code
Version Power
Version CCT
Version Dimensions
Version Lumen
LOOPH.10.225.N.4.120
10 W
4000 K
225 mm
900 lm
LOOPH.22.400.N.4.120
22 W
4000 K
400 mm
1980 lm
LOOPH.20.500.N.4.120
20 W
4000 K
500 mm
1800 lm
LOOPH.29.500.N.4.120
29 W
4000 K
500 mm
2606 lm
LOOPH.35.600.N.4.120
35 W
4000 K
600 mm
3150 lm
LOOPH.42.700.N.4.120
42 W
4000 K
700 mm
3780 lm
LOOPH.48.800.N.4.120
48 W
4000 K
800 mm
4320 lm
LOOPH.57.900.N.4.120
57 W
4000 K
900 mm
5130 lm
LOOPH.40.1000.N.4.120
40 W
4000 K
1000 mm
3600 lm
LOOPH.64.1000.N.4.120
64 W
4000 K
1000 mm
5760 lm
LOOPH.66.1100.N.4.120
66 W
4000 K
1100 mm
5940 lm
LOOPH.60.1150.N.4.120
60 W
4000 K
1150 mm
5400 lm
LOOPH.77.1200.N.4.120
77 W
4000 K
1200 mm
6930 lm
LOOPH.84.1300.N.4.120
84 W
4000 K
1300 mm
7556 lm
LOOPH.90.1400.N.4.120
90 W
4000 K
1400 mm
8120 lm
LOOPH.80.1500.N.4.120
80 W
4000 K
1500 mm
7200 lm
LOOPH.97.1500.N.4.120
97 W
4000 K
1500 mm
8728 lm
LOOPH.106.1600.N.4.120
106 W
4000 K
1600 mm
9540 lm
LOOPH.120.2000.N.4.120
120 W
4000 K
2000 mm
10800 lm
LOOPH.154.2300.N.4.120
154 W
4000 K
2300 mm
13856 lm
LOOPH.160.2400.N.4.120
160 W
4000 K
2400 mm
14400 lm
LOOPH.180.2700.N.4.120
180 W
4000 K
2700 mm
16200 lm
LOOPH.195.2900.N.4.120
195 W
4000 K
2900 mm
17550 lm
LOOPH.216.3200.N.4.120
216 W
4000 K
3200 mm
19437 lm
LOOPH.228.3400.N.4.120
228 W
4000 K
3400 mm
20520 lm
LOOPH.244.3600.N.4.120
244 W
4000 K
3600 mm
21960 lm
LOOPH.258.3800.N.4.120
258 W
4000 K
3800 mm
23220 lm
LOOPH.265.3900.N.4.120
265 W
4000 K
3900 mm
23850 lm
LOOPH.278.4100.N.4.120
278 W
4000 K
4100 mm
25020 lm
LOOPH.284.4200.N.4.120
284 W
4000 K
4200 mm
25560 lm
LOOPH.296.4400.N.4.120
296 W
4000 K
4400 mm
26640 lm
LOOPH.308.4600.N.4.120
308 W
4000 K
4600 mm
27720 lm
LOOPH.320.4800.N.4.120
320 W
4000 K
4800 mm
28800 lm
LOOPH.326.4900.N.4.120
326 W
4000 K
4900 mm
29340 lm
LOOPH.332.5000.N.4.120
332 W
4000 K
5000 mm
29980 lm
