SATIN LINE SQ W
Product Description

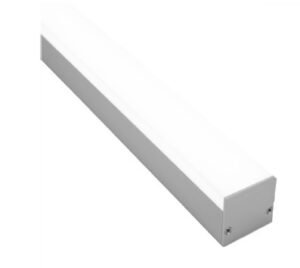

SATIN LINE is a linear LED fixture for facades and creative installations. Continuous interconnection with IP67 connectors Mounting bracket made of Stainless steel.
Aluminium extruded body and polyurethane based epoxy covering the electronics inside the luminaire so that the luminaire meets IP67 enclosure ratings Satin Line pixel can be fully customized in terms of leghts to match every installations types and measurements.
Installation
Connection
Design
Lenses
Light distribution
Specification
Versions
Documents
Technical Drawings
Specification
İnput Voltage:
24 V
IP Rate:
67
Impact Resistance:
CCT:
3000, 4000, 6500 K
Beam Angle:
Control:
Manual control
Version Product Code
Version Power
Version CCT
Version Dimensions
Version Lumen
SATINLINESQW.7.1000.4
7 W
4000 K
1000 mm
910 lm
SATINLINESQW.12.1000.4
12 W
4000 K
1000 mm
1560 lm
SATINLINESQW.14.1000.4
14 W
4000 K
1000 mm
1820 lm
SATINLINESQW.18.1000.4
18 W
4000 K
1000 mm
2340 lm
SATINLINESQW.21.1000.4
21 W
4000 K
1000 mm
2960 lm
