Satin Line LINE PIXEL
Product Description

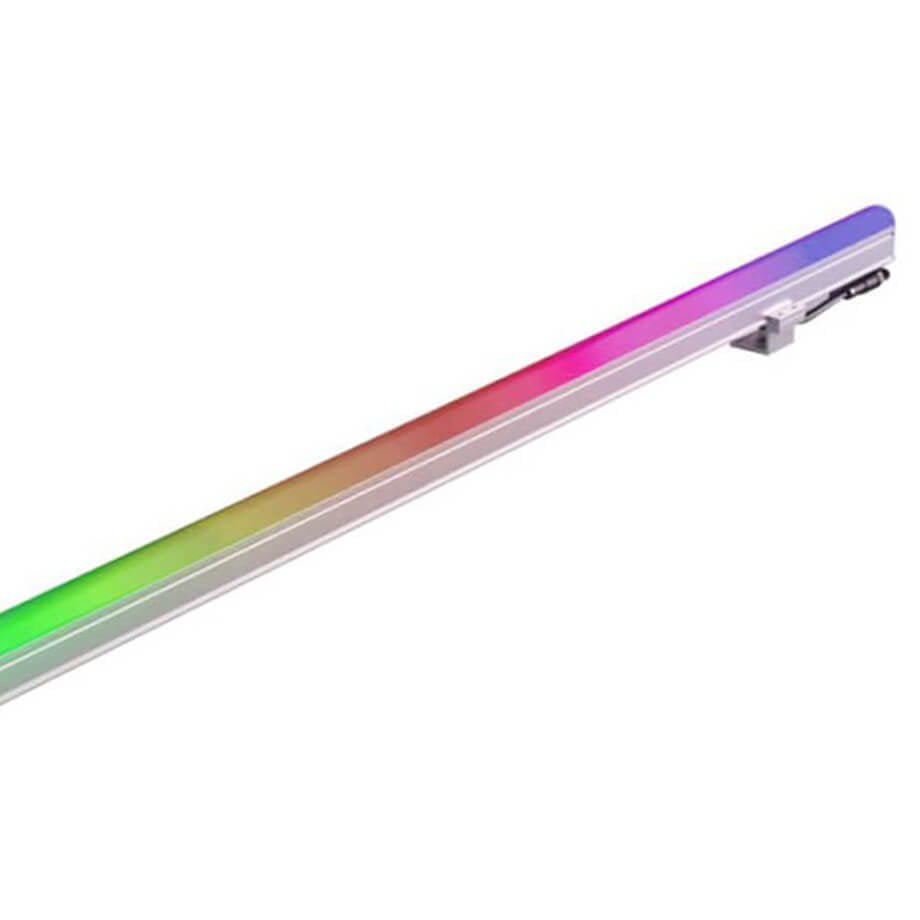

Satin Line is well designed LED Aluminium profile designed to provide linear effects. All lenghts and color temperatures can be customized according to the specifications. This product is meant to be installed in many architectural buildings using AISI 316 stainless steel brackets. Satin Line allows for use and installation at a maximum temperature of 60 ° C and high powers RGB and RGBW Pixel Linear Lighting techology. Depends on the project and enviroments it can be manufactured with different options by HB LUX in Turkey.
Installation
SPI CONTROL SYS or DMX512 -20C°/+60C° Temperature LED Quantity is 48 LEDS/ M Pixel Quantity: 8 Pixels/M Pixel Pitch: 12.5CM
Connection
Design

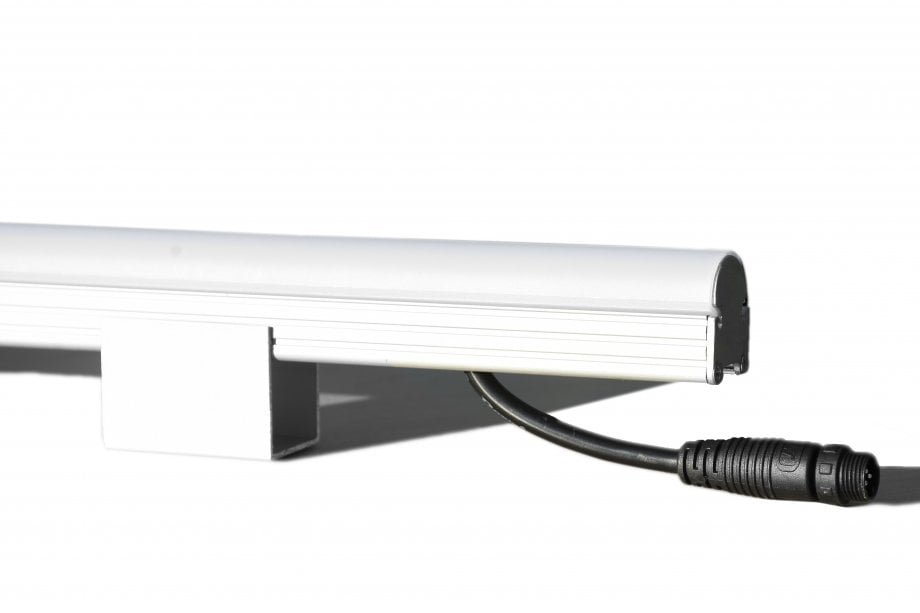

LED Pixel Type Wall mounted ledbar fixture Aluminum extruded body Direct view linear LED Luminaire UV protected polycarbonate diffuser Aluminum mounting brackets Production in different lengths ENEC Standarts 48 x 5050 3-in-1 RGB SMD LEDs 8 pixels / m pixel quantity, each 12.5cm is an individual pixels Anti-shadow design at intersection points 160 cd / m Light Output IP67
Lenses
Light distribution
Specification
Versions
Documents
Technical Drawings
Specification
İnput Voltage:
24 V
IP Rate:
67
Impact Resistance:
CCT:
K
Beam Angle:
Control:
DMX
