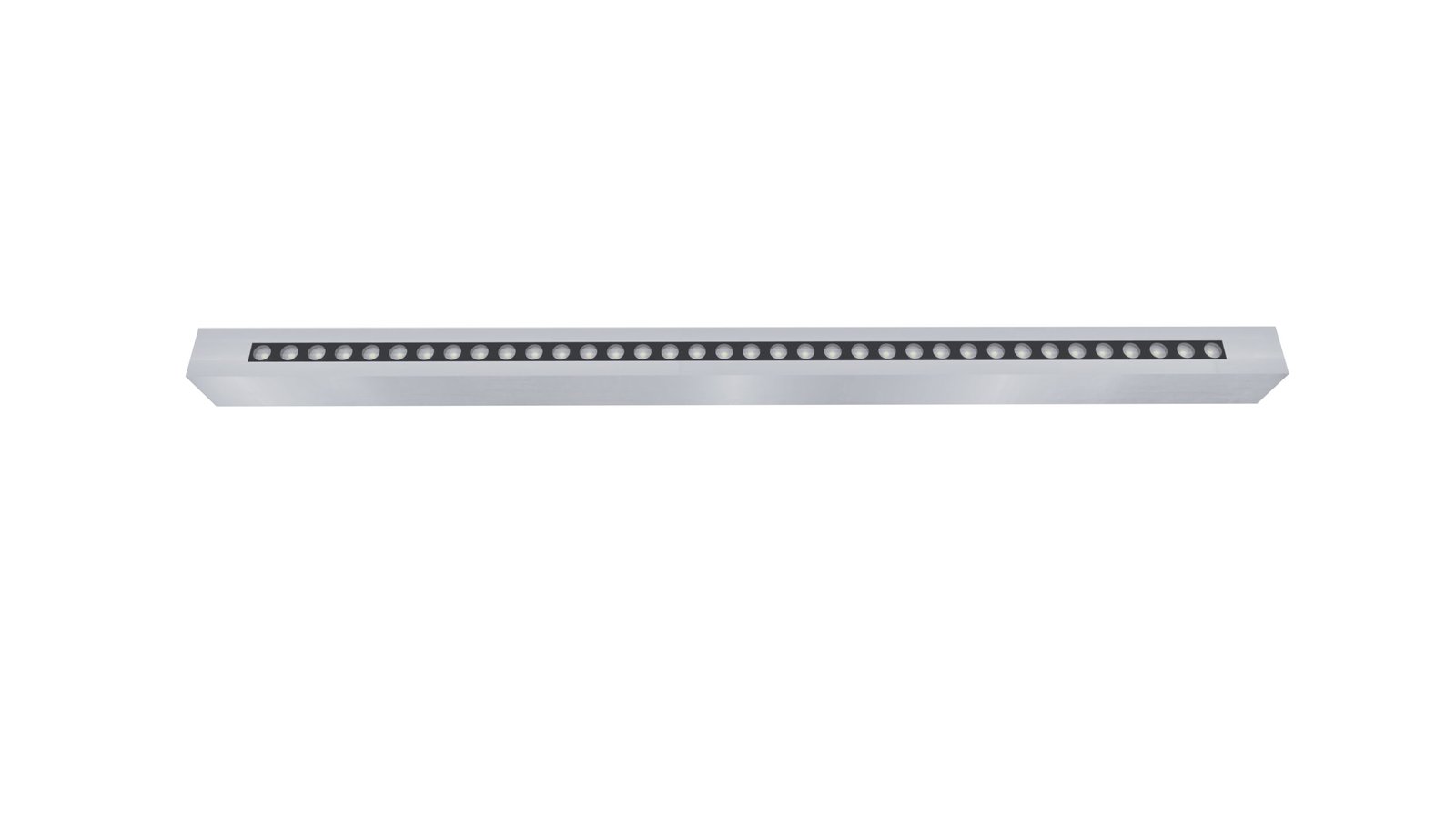

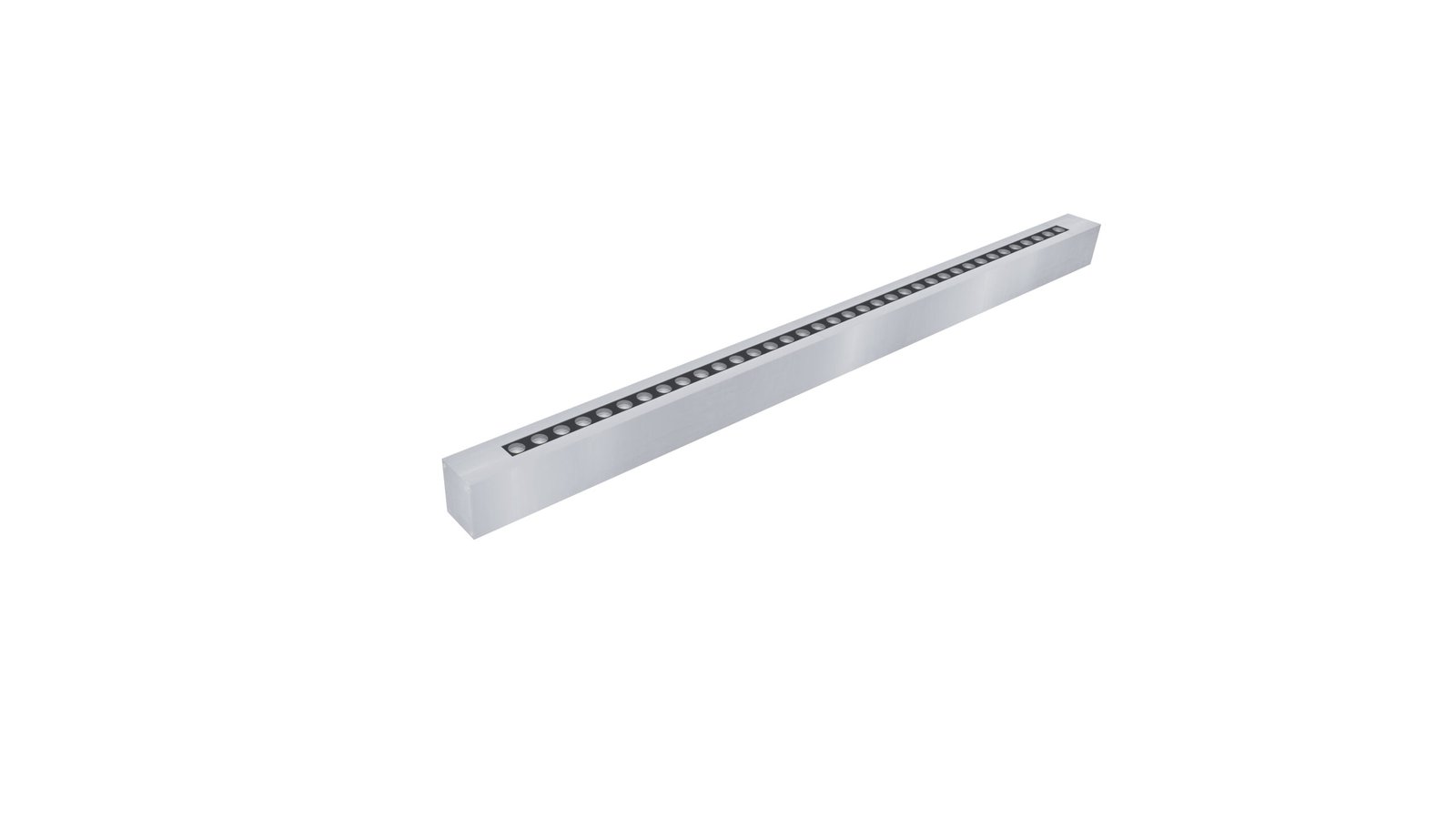

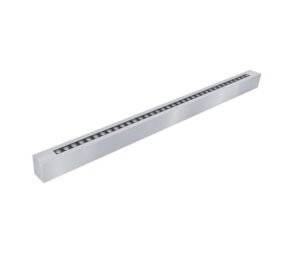

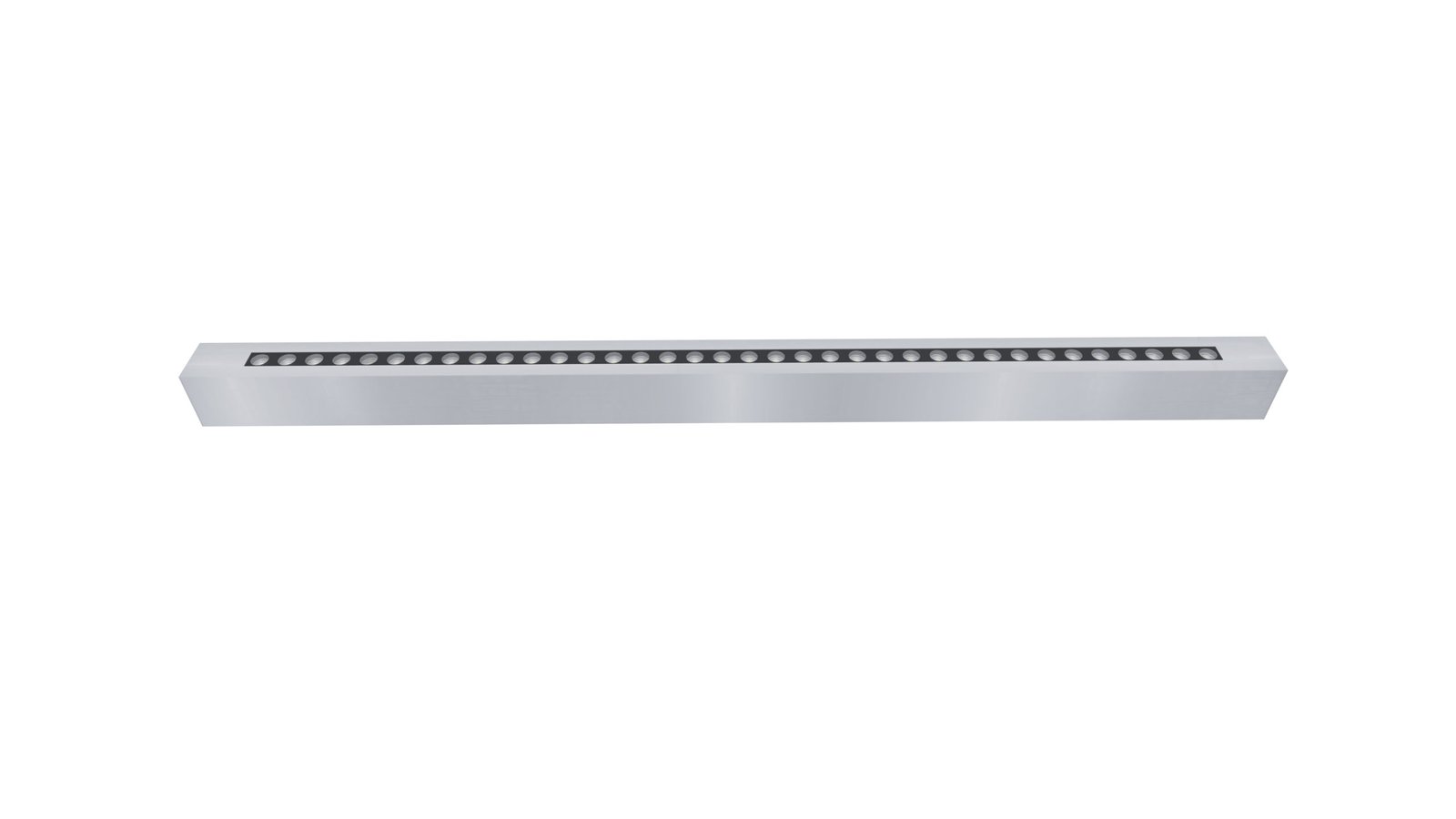

CESAR SS MONOCOLOR
Product Description
Cesar SS Monocolour exterior wallwasher luminarie is mainly
usednwall washing, spot lighting and ood lighting.
Continuous interconnection with IP68 connectors Mounting
bracket made of stainless steel.
Stainless steel body with satinless steel end caps offering various
installation types. It is available as dimming options and many
customizations options.
Installation
Connection
Design
LED Linear Type Wallwasher Surface Mounted Facade Lighting
Lenses
Extra Clear 5mm Tempered Glass
Light distribution
Specification
Versions
Documents

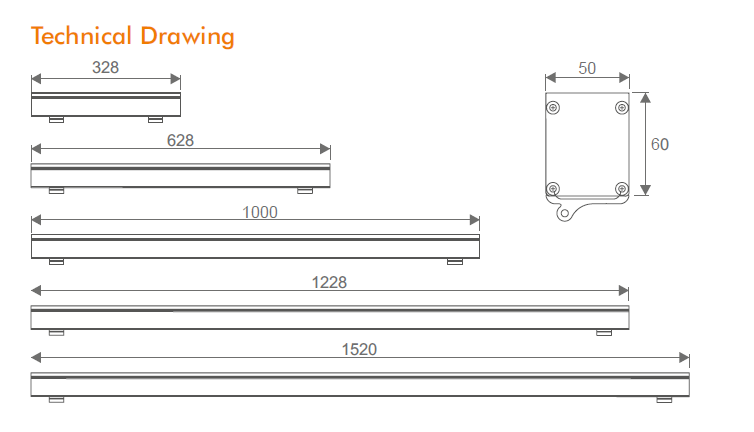

Technical Drawings
Specification
İnput Voltage:
240 V
IP Rate:
68
Impact Resistance:
09
CCT:
3000, 4000, 6500 K
Beam Angle:
Direct
Control:
DALI
Version Product Code
Version Power
Version CCT
Version Dimensions
Version Lumen
CesarSS.MC.8.328.N.4.XX
8 W
4000 K
328 mm
1200 lm
CesarSS.MC.12.328.N.4.XX
12 W
4000 K
328 mm
1800 lm
CesarSS.MC.16.628.N.4.XX
16 W
4000 K
628 mm
2400 lm
CesarSS.MC.24.628.N.4.XX
24 W
4000 K
628 mm
3600 lm
CesarSS.MC.27.1000.N.4.XX
27 W
4000 K
1000 mm
4050 lm
CesarSS.MC.48.1000.N.4.XX
48 W
4000 K
1000 mm
7200 lm
CesarSS.MC.36.1228.N.4.XX
36 W
4000 K
1228 mm
5400 lm
CesarSS.MC.54.1228.N.4.XX
54 W
4000 K
1228 mm
8100 lm
CesarSS.MC.40.1520.N.4.XX
40 W
4000 K
1520 mm
6000 lm
CesarSS.MC.54.1520.N.4.XX
54 W
4000 K
1520 mm
8100 lm
